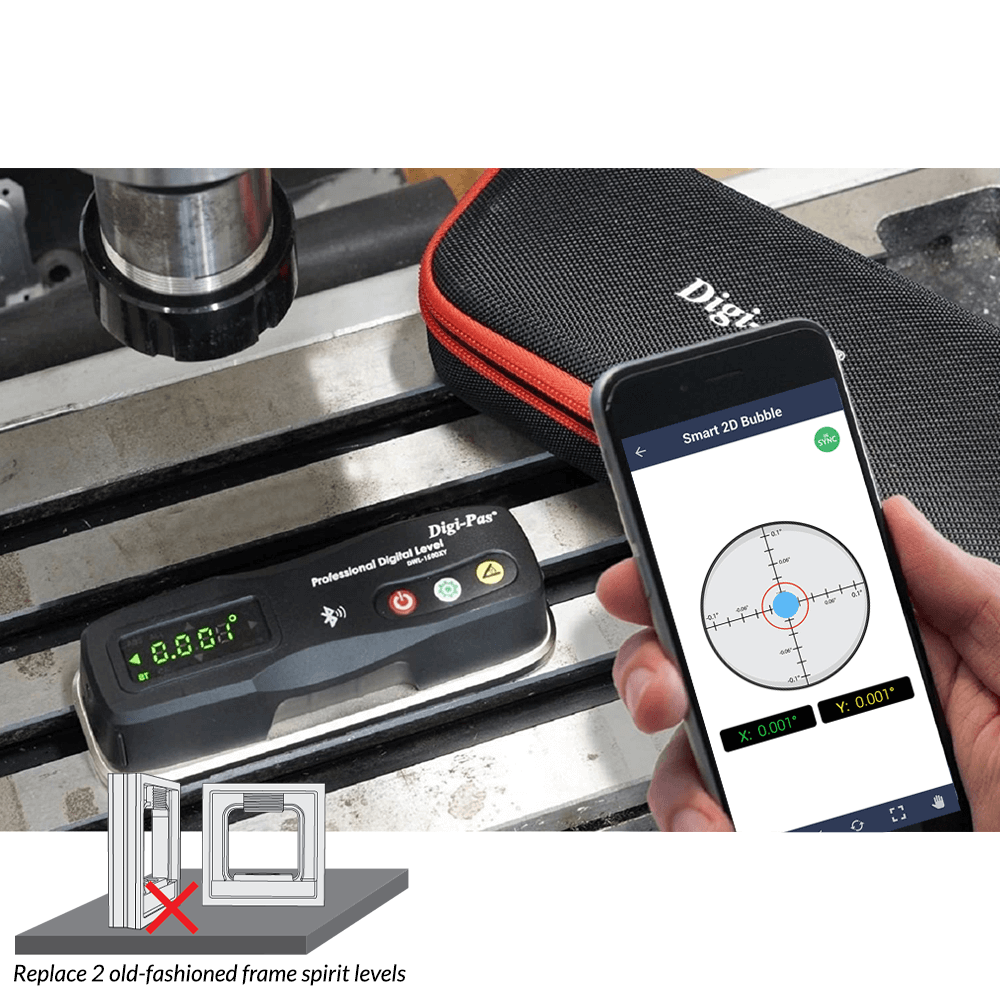

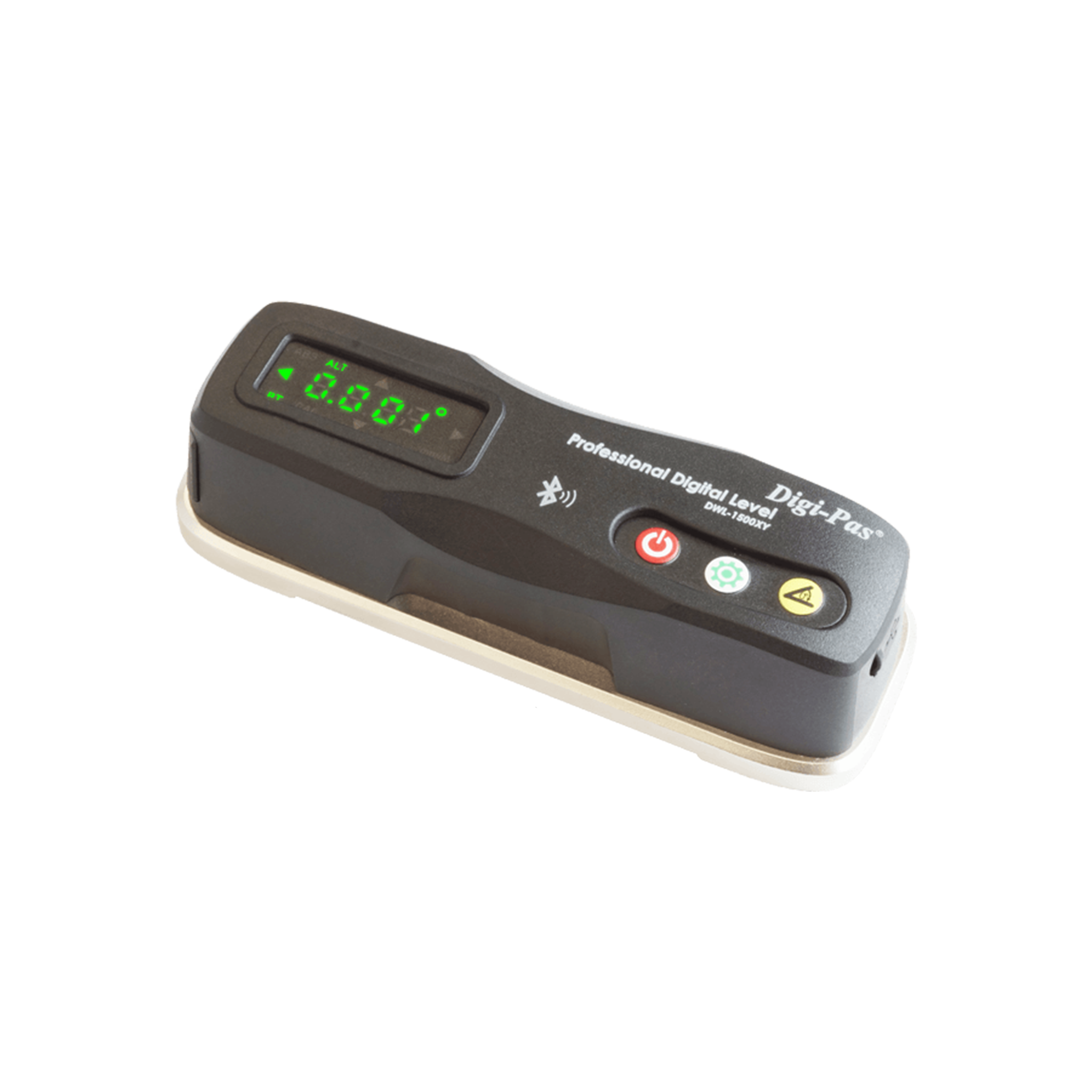

Digi-Pas DWL-1500XY is a Dual-Axis (2 Axis) Precision Digital Level. It allows for quick and precise alignment during the set up of machines or for checking that worktops are perpendicular to machine tools like drills. The Digi-pas app also reduces manpower and time taken to verify readings as data can be monitored remotely. Resolution : 0.001° (Accuracy: ±0.0004″/ft or 10-second (± 0.002°) from 0° to ±0.5° ± 0.004° at other angles) Replaces Traditional Spirit Levels DWL-1500XY replaces old-fashioned VIAL levels. Users read both X & Y axis levelling measurements wirelessly in proximity via Bluetooth, which effectively cuts down installation & setup time. One-man operation is now possible for precision machines & equipment. With “DigiPas Machinist Level” Mobile App (Free one redeemable app with each purchase), Use 2 Devices with the App for Precise Alignment Multiple devices can also be monitored at the same time using the app, ensuring you have the best alignment. Digi-Pas Precision Digital Level is highly accurate, verified by 3rd parties accredited calibration labs & test bodies in US, Japan & Germany in accordance with ISO/IEC 17025:2005 and ANSI/NCSL Z540-1 standard, traceable to NIST, JIS & DIN. Self Calibration Video Specifications Measuring range: 0.000° ~ ±2.000° dual-axis Resolution: 0.0002″/ft or 5-second (0.020 mm/M or 0.001°) Accuracy: ±0.0004″/ft or 10-second (± 0.002°) from 0° to ±0.5° ± 0.004° at other angles User may use device without or with Bluetooth? Measurement when paired with smartphone & Digi-Pas Machinist level App Bluetooth range: approx. 50ft. Operating temperature range: 10°F to 120°F or -10°C to +50°C ACCURACY of Digi-Pas digital level is verified by accredited 3rd Party Calibration & Test Laboratories in USA, Japan and Germany traceable to NIST, JIS & DIN. Application Examples Digi-Pas ? DWL-1500XY are used for installation, setup, maintenance of milling & surface grinding CNC machines. It is able to accurately level jig & fixtures and worktable of the machines prior to machining process for achieving exact and precise flat surface machining. Precise fabrication setups keep the machined parts within the required tolerance. The simultaneous display for dual-axis feature of Digi-Pas ? DWL-1500XY master machinist digital level speeding up alignment procedures and reducing training level for new operators to reliably achieve precise levelling results. Operator does not need to meticulously taking readings in both directions over and again as experienced with traditional single-axis levels. Digi-Pas DWL-1500XY 2-Axis model is used for Vision Measurement Equipment installation & setup. Levelling & checking equipment’s positional Stability for high quality sharp image capturing & measurement. Digi-Pas DWL-1500XY is used for aligning precision fixtures. Absolute levelling and positional accuracy are required in meeting tight tolerance for highest quality in many manufacturing processes within semiconductor wafer foundries. Digi-Pas DWL-1500XY dual axis model is used for monitoring a precision wafer manufacturing equipment’s performance.
