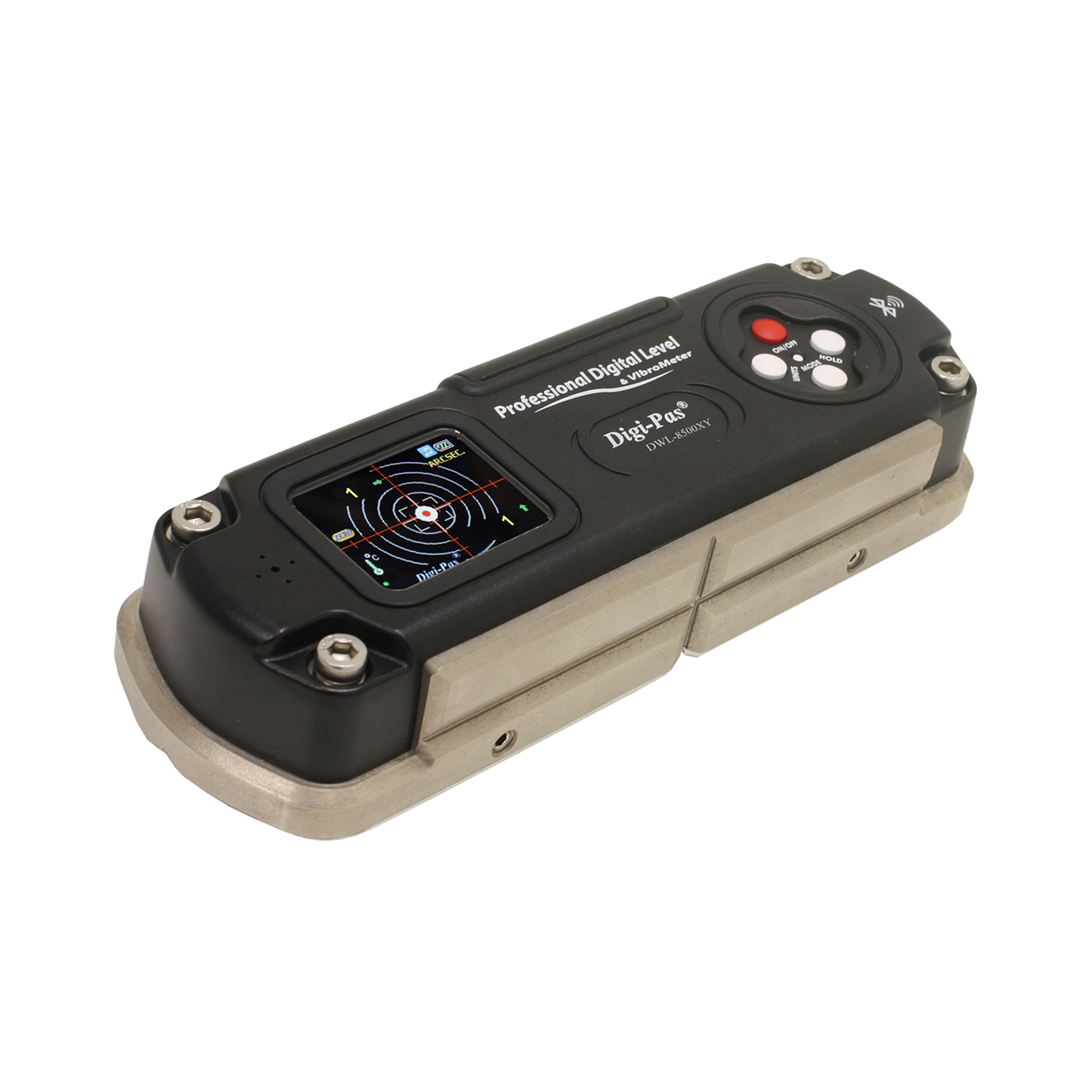

2-Axis Ultra Precision Inclinometer (DWL 8500XY)

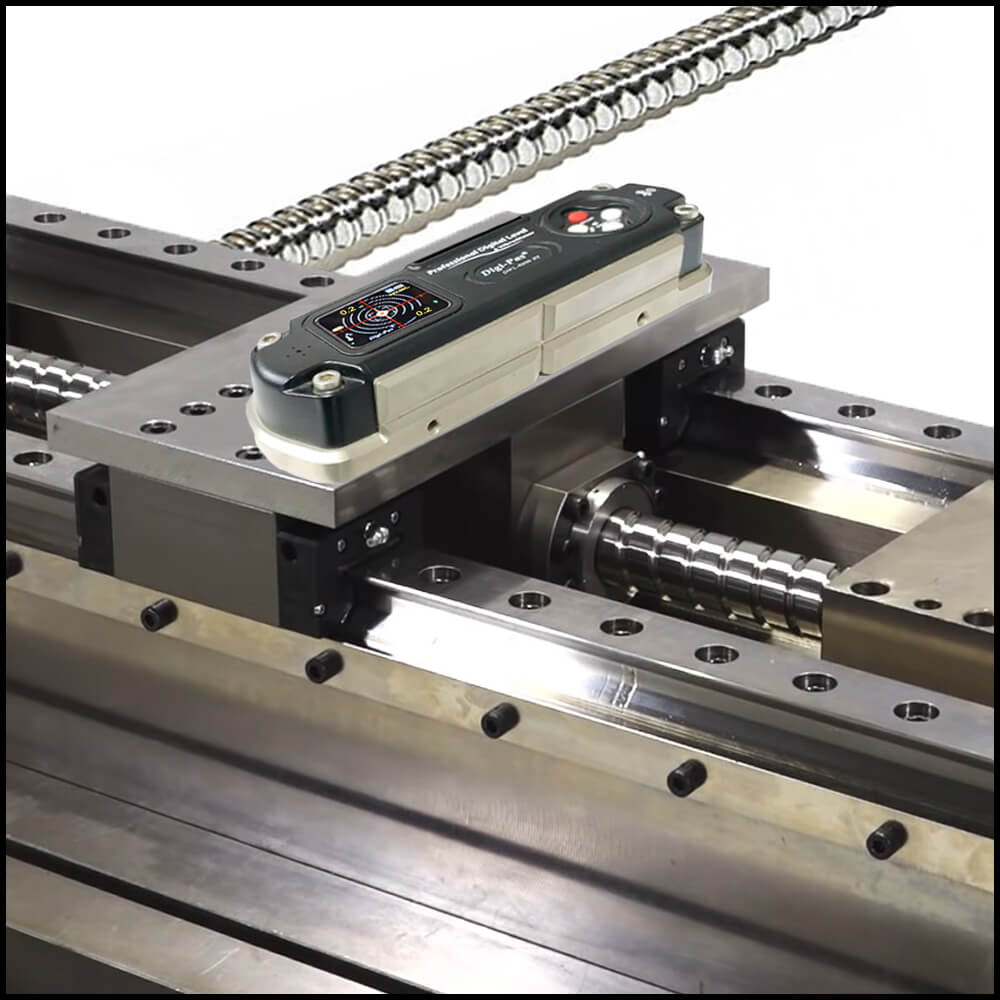

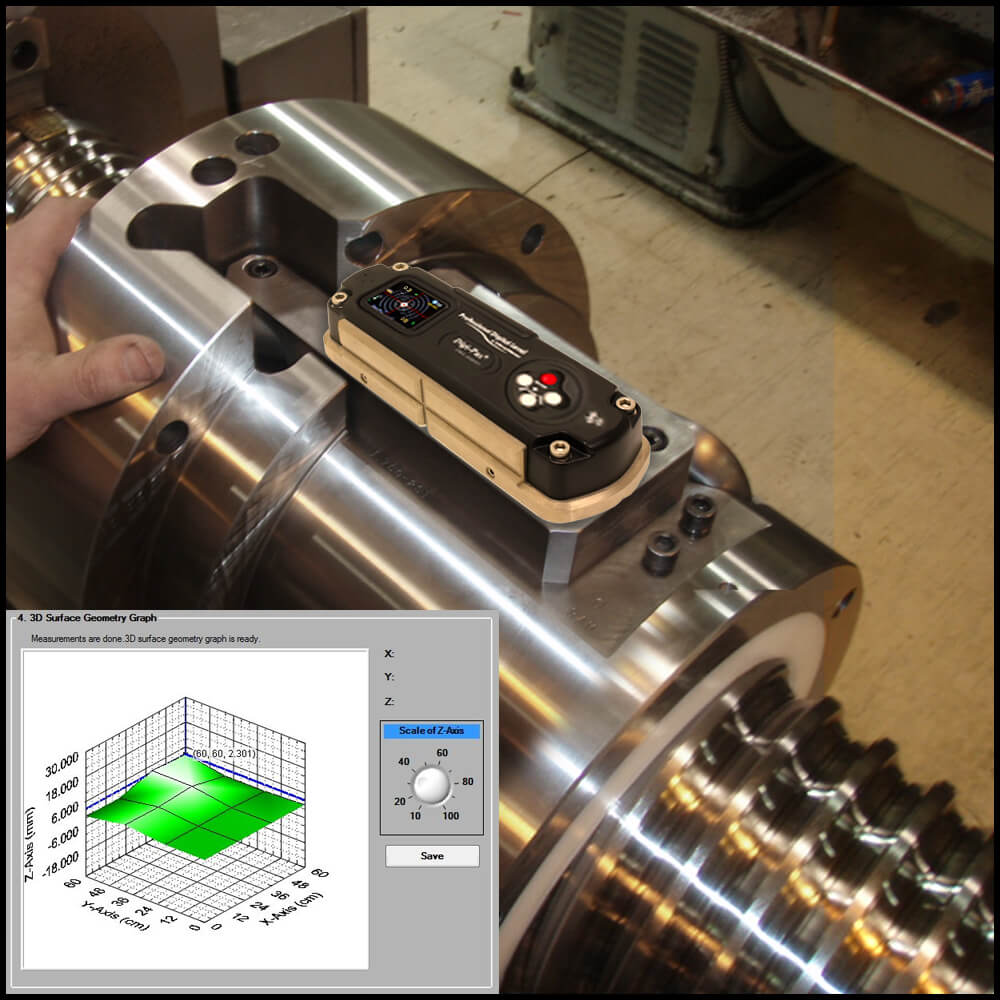

2-Axis Ultra Precision Inclinometer (DWL 8500XY) For arcsecond precision measurement 0.0 to 14400 arcsec. (Single Axis); 0.0 to 7200 arcsec. (Dual Axis) The DWL 8500XY 2-Axis Ultra Precision Inclinometer drive performance in the semiconductor industry, robotics, and leveling of CMM machines and granite tables. With the most accurate reading and vibration monitoring capabilities, the inclinometer can measure up to x, y and z axis and checks flatness up to 1 arcsecond. Common applications include precision alignment of granite plates and other calibration equipment. Measuring range from 0.0 to 14400 arcsec. (Single Axis); 0.0 to 7200 arcsec. (Dual Axis) Resolution of 1 arcsec. (≤ 5μm/M) Accuracy ±1 arcsec at 0 to ±1080 arcsec.; ±3 arcsec at other angles 3D surface geometry graph using PC-Sync Software for high accuracy surface flatness profile measurement> Digital colour graphic display of dual angles Vibrometer display real time low-frequency (2 to 75Hz) vibration graph Angularmeter display real-time 2-Axis angle graph Wireless Bluetooth Industrial Class 1 (>30 Meters) Professional PC Sync Software with wireless Bluetooth or USB-cable connection to device for remote acquisition and data logging, USB external power source Operating temperature at 50°F to 104°F or +10°C to +40°C 3-points contact base for most stable surface-to-surface contact to prevent “rocking”
