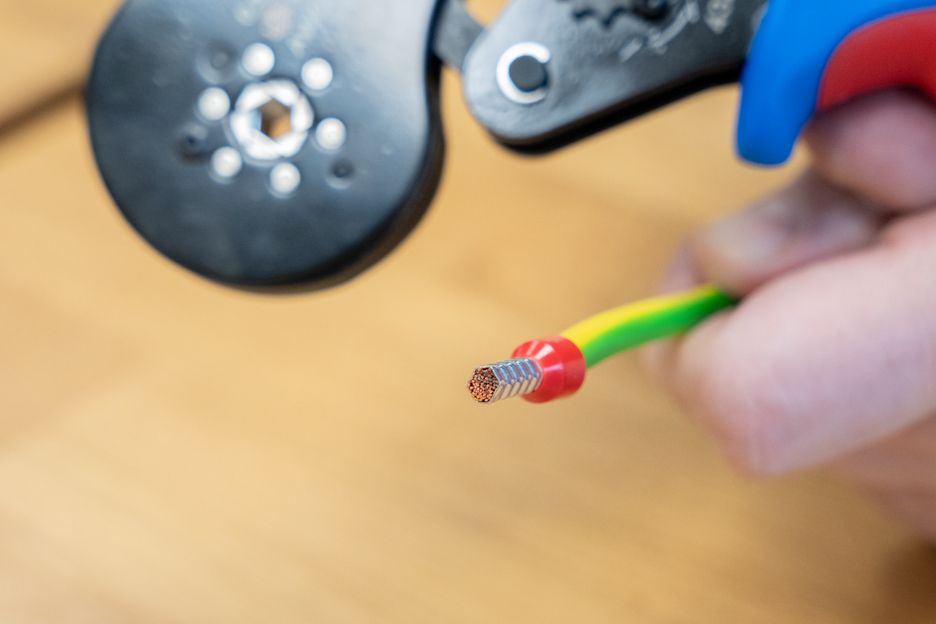

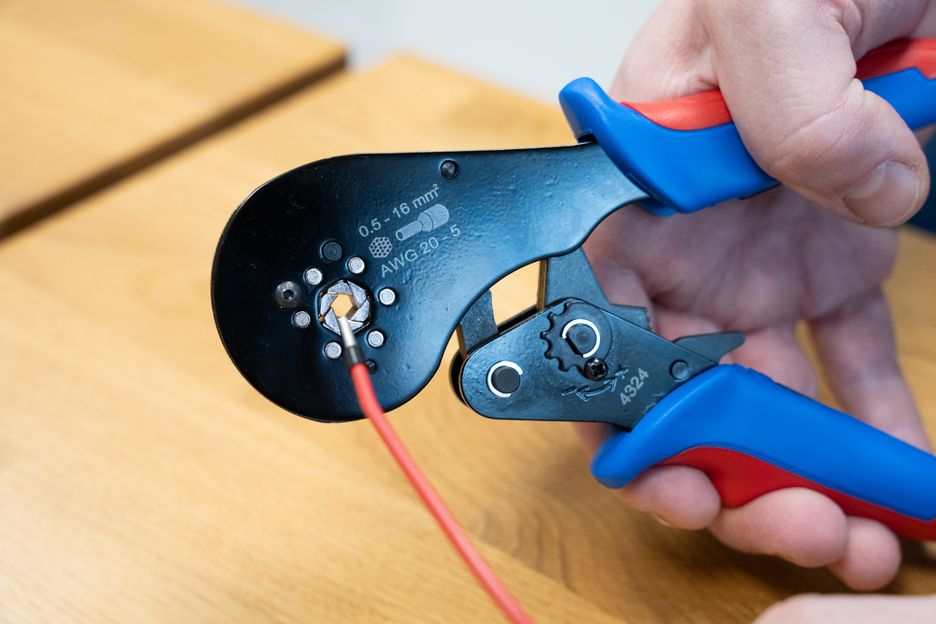

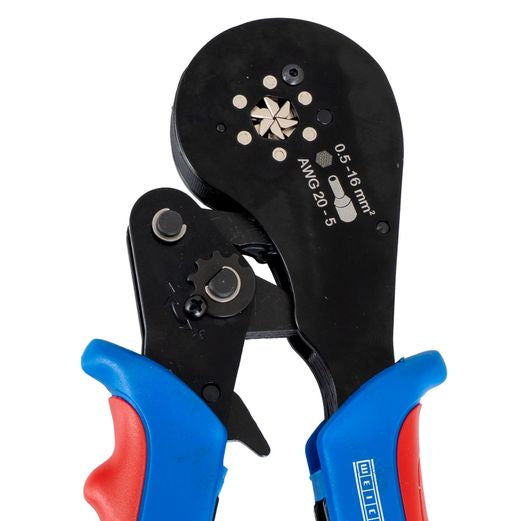

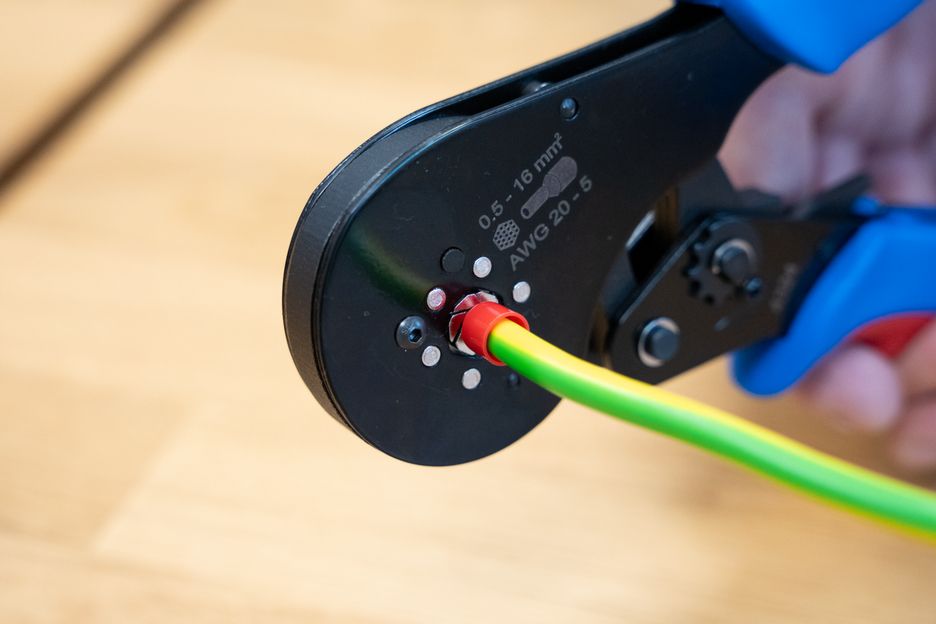

The WEICON HEX-CRIMP 16 mm2 is a professional crimping tool designed for process-safe crimping of wire end ferrules, producing a hexagonal crimp that helps ferrules insert cleanly into round terminals. It uses a ratchet mechanism with a blocking device to ensure consistent results and only releases once the crimp cycle is completed. An integrated emergency release supports safe recovery if the tool is misused, while an eccentric adjustment allows fine tuning of the crimping force for repeatable, reliable electrical connections. Key features Hexagonal crimp profile for easier insertion into round terminals Working range: 0.5-16 mm2 (AWG 20-5) Ratchet with blocking device (tool opens only after completed crimp) Emergency release built into handle Serrated dies, multi-hardened carbon steel (durable, stable crimp) 2-component handles (non-slip, ergonomic grip) + handle eyelets for safety lanyard Standard: suitable for ferrules to DIN 46228 Part 1 + 4 Dimensions / material Length: 222 mm Weight: 586 g Body material: carbon steel, painted black Safety note Not to be used on live cables or conductors.
