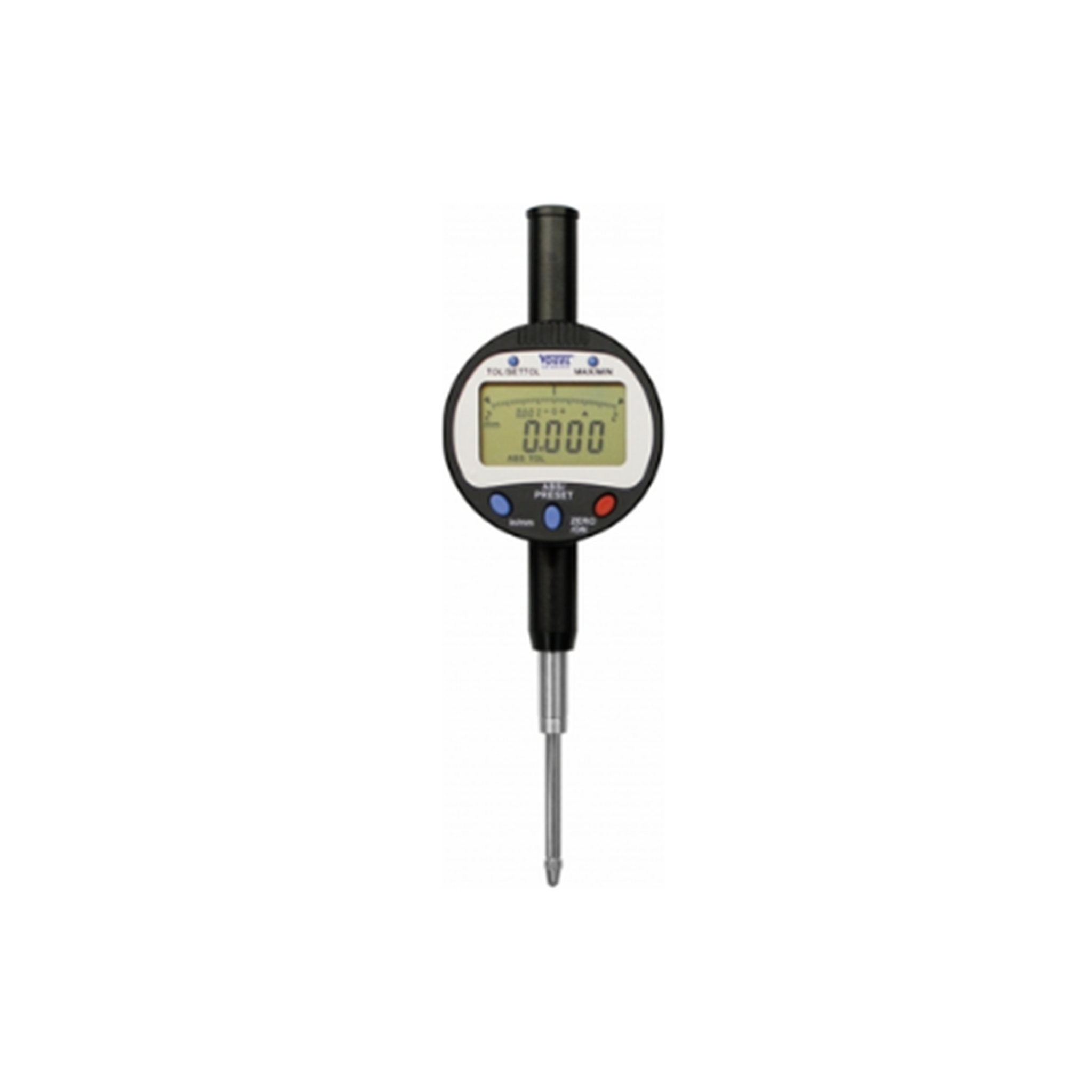

Vogel Digital Indicator is a plunger dial gauge used for accurate measurements for checking surface flatness and depth tolerances. The electronic dial gauge is usually used together with a magnetic stand or measuring bridge. Large Digital Display allows for easy reading Tolerance setting gives clear boundaries for tolerance testing limits. Clip back for easy attachment to measuring stands Up to 0.001mm Resolution provides very precise inspection to be conducted Exchangeable probe tips provide flexibility USB output for recording of multiple values Factory Inspection Certificate for quality control and traceability Specifications Measuring range: 0 – 25.4 mm / 0 – 1.0 inch Resolution: 0.01 mm / 0.0005 inch OR 0.001mm / 0.00005 inch Repeatability +-: 0.01 mm Max. total accuracy +-: 0.015 mm Measuring force: with USB data output Aluminium housing with sturdy plastic cover Large LCD display with clear reading, digit height 10 mm Stem and spindle stainless, hardened and lapped Exchangeable probe tips, M 2.5 On/Off button, ABS and Preset function Zero setting at any position, mm/inch switchable Min./max., tol. and set function (selection and indication of tolerance limits) With a flat cover and cover with lug Draw A: 120 mm B: 60 mm
