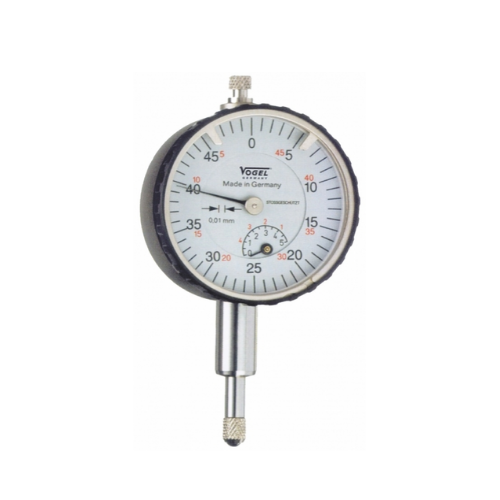

Vogel Dial Indicator is a plunger type dial gauge with high precision is specifically for workshop and calibration purposes. Available up to 0.001mm accuracy. Turn-able outer ring scale for easy zero setting of reference point Large scale graduation for very fine tolerances Additional 1mm scale for measurements exceeding first dial reading Indented plastics to work as tolerance markers during measurements Stainless Steel housing for food areas or areas where rust may affect readings 100% made in Germany ensures quick lead times excellent quality controls .embed-container { position: relative; padding-bottom: 56.25%; height: 0; overflow: hidden; max-width: 100%; } .embed-container iframe, .embed-container object, .embed-container embed { position: absolute; top: 0; left: 0; width: 100%; height: 100%; } Specifications Measuring range: 0 – 5 mm Resolution: 0.01 mm Solid brass housing, matt chrome finish Spindle and stem stainless, hardened and lapped Adjustable tolerance fingers From up 0.001 mm reading With turnable scale by outer ring, for easy zero setting A: 28.5 mm B: 14 mm C: 8.2 mm D: ? 45 mm
