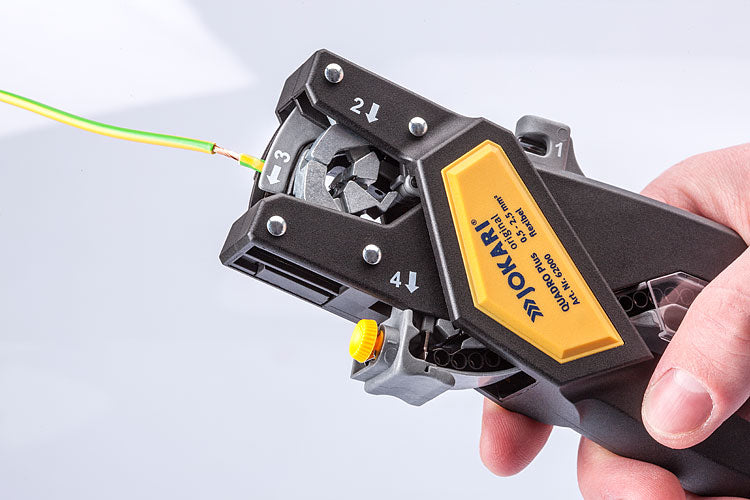

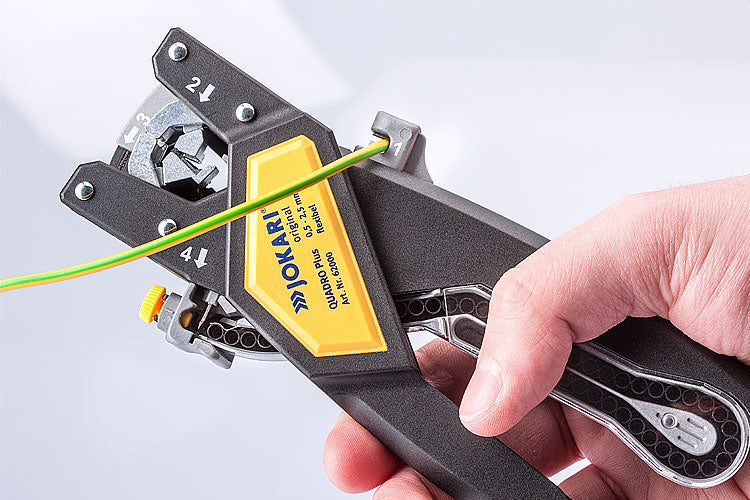

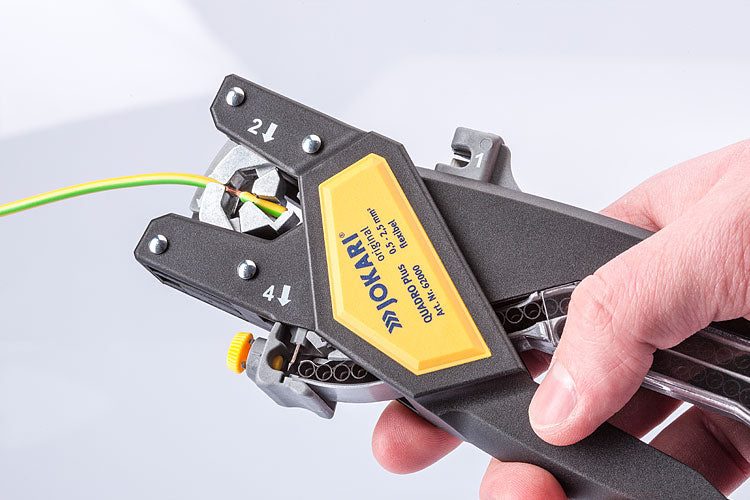

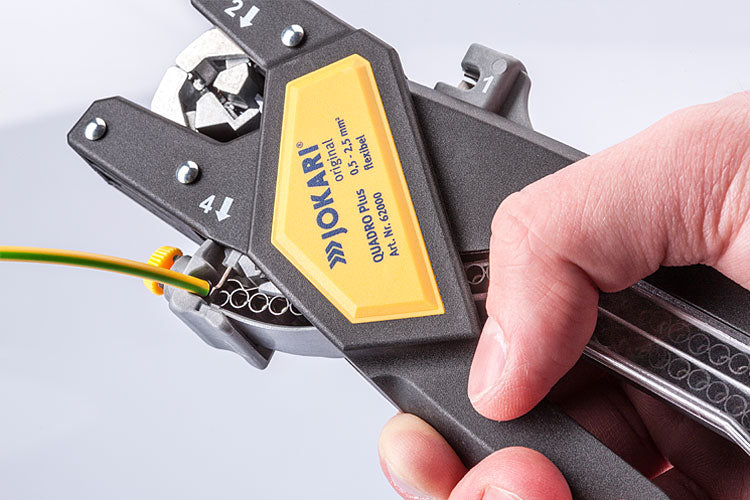

Save time in your crimping tasks and work more quickly for production and manufacturing. This is an ideal tool for electrical work. It has a four step process for cutting, insulation stripping, twisting and crimping. C rimping of insulated ferrules from strips 0.5 to 2.5 mm2 (AWG 20 – 14) according VDE 0609 Part 1. Step 1: Use the top of the tool to cut the wire Step 2: Insert the wire into the front of the tool to strip Step 3: Place the wire at the front of the wire to twist it Step 4: Place the wire at the bottom of the tool to insert a ferrule How to use Jokari Wire Stripper Quadro Plus With integrated locking mechanism to ensure an even, high-quality pressing, Fast and precise crimping of connector sleeves in strip form The integrated locking mechanism releases when the crimp stamp has reached the final position, The quick reloading of connector sleeves by switching magazines enables fast and efficient work. no adjustment necessary for different cross-sections, working range: wires with insulation made of PVC from 0.5 to 2.5 mm2 (AWG 20 – 14), wire stopper for perfect length, no adjustment necessary for different cross-sections, twisting prevents splaying of wire strands to enable easy insertion in connector sleeves, crimping of insulated ferrules from strips 0.5 to 2.5 mm2 (AWG 20 – 14) according VDE 0609 Part 1, electrical industry, electrical service, electrical switch control boxes
